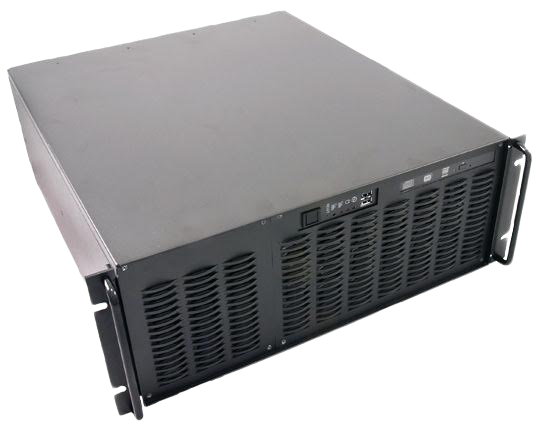

RMS420-C600
Optimized for applications requiring low noise and high parallel processing
The RMS420-C600 Server combines two 2nd generation Intel® Xeon® Processor E5 Family CPUs with very high
memory bandwidth and exceptional I/O capability. It is optimized for applications requiring low noise and
high parallel processing.
The RMS420-C600 Server is designed for compute-intensive applications requiring parallel processing. This
server combines two state-of-the-art Intel® Xeon® Processor E5 Family CPUs with very high memory bandwidth
and exceptional I/O capability designed to support multiple co-processors. The basic server can support two
six-core CPUs for a total of 12 cores. Optimized to support additional graphics processor units, the
RMS420-C600 can meet your most challenging imaging needs in a quiet, compact server platform.
Heterogeneous Compute Platform
The RMS420-C600 was designed to support multiple high performance coprocessors in order to provide maximum compute performance in a single platform. Two PCIe Gen 3.0 x16 slots are provided with spacing appropriate for double-wide cards such as high performance GPU cards, typically used as co-processors for high performance parallel-processing. Power supplies up to 1200 watts are available to support high-power cards and the chassis has been designed with robust and efficient cooling to handle the thermal load.
Modular Chassis for Design Flexibility
The standard product versions of the RMS420-C600 server include a drive bay for up to five 3.5″ SATA or SAS drives and also support an internal disk drive plus a slim-line optical drive. These configurations support up to two full-length double-wide PCIe cards. Other options are available including support for 3 front-accessible hard disks for easy maintenance.
Additional Specifications
FEATURES
- Designed for parallel processing
- Dual Intel E5-2600 Series Quad or Six Core Xeon processors
- On-board BMC for remote management
- 4 PCIe 3.0 x16 slots
- 1 PCIe 3.0 x8 slot
- 1 PCIe 3.0 x4 slot
- Up to 8 hard disk drives
- Long life
- EMC Class B
- Low acoustic noise
- 4U, 20″ chassis
SPECIFICATIONS
| Feature | Function | Description |
|---|---|---|
| Physical | Dimensions | 6.86″ (H) x 17″ (W) x 19.6″ (D)(174.2 mm x 431.8 mm x 497.8 mm) |
| Weight | 44 lbs (20 kg) base chassis | |
| Power Supply | Input | 100 to 240 VAC, 50/60Hz auto switching |
| Output | 650W, 1000W or 1200W Supplies Available | |
| Cooling | Fans | Two or three 120mm front accessible fans |
| One fan mounted in power supply | ||
| Fansink(s) on the processor(s) | ||
| Processor System | Board | Radisys C600 |
| CPU | 1 or 2 Intel® Xeon® Processor E5 Family | |
| Chipset | C600 | |
| Memory | 16 DIMM Slots, Up to 64 GB of DDR3-800/1066/1333 ECC RDIMM | |
| Video | On-board VGA | |
| Front I/O | Switches | Power, Reset/Power On |
| LED/Indicators | Hard Disk Activity | |
| USB | Two Front USB 2.0 Type A connectors | |
| Rear I/O | Serial | One 9-pin D-sub connectors |
| USB | Four USB 2.0 Type A connectors | |
| Video | One 15-pin VGA D-sub connector | |
| Ethernet | Quad 10/100/1000BaseT + Single 10/100Base T, with status indictors | |
| Slots | All PCIe Gen 3.0 | Four x16, one x8, one x4(x8 connector) |
| Mass Storage | Optical Drive | Slim-line DVD-ROM or DVD-RW |
| Hard Disk | Front Accessible or Internal, SATA or SAS | |
| Up to six 3.5″ or seven 2.5” | ||
| System Management | On-board BMC Supports IPMI 2.0 with dedicated 10/100 BASE-T port. | |
| Environment | Operating Non-operating | |
| 5° C to 45° C (5°C/min max gradient) | -40° C to 85° C | |
| Humidity | 5% to 95% RH max at 29.4° C, wet bulb non-condensing | |
| Shock | 1g, ½ sine, 11ms 30g ½ sine, 11ms | |
| Vibration | Random 0.27grms, 17 Hz to 150 Hz @ 0.0003 g2/Hz Random 2.2 grms, 5 Hz to 500 Hz @0.01 g2/Hz | |
| Altitude | -100 (-30m) to13,000 ft (3,962 m) -100 (-30m) to 40,000 ft (12,000 m) | |
| Regulatory | Emissions | FCC Part 15 Class B |
| European EMC Directive | ||
| EN55022: 2006 Class B | ||
| EN50024: 1998 | ||
| Safety | UL/cUL UL60950 | |
| EN60950 (CB REPORT) | ||
| CE Mark | ||
| CCC | ||
| Acoustic Noise | < 46 dBA at one meter under full load at 25° C |
MORE DETAILS
Radisys offers one standard product configuration intended to support configuration by the
customer. Radisys can also develop and qualify additional configurations to meet specific
customer requirements.
Radisys can develop and qualify a configuration to meet your specific requirements. Please
call us and we can help develop a system to meet your needs
